Greenox - Sawing Expert

Process

  • SINGLE SIDE SAWING
  • DOUBLE SIDE SAWING
  • SLICING
  • 1

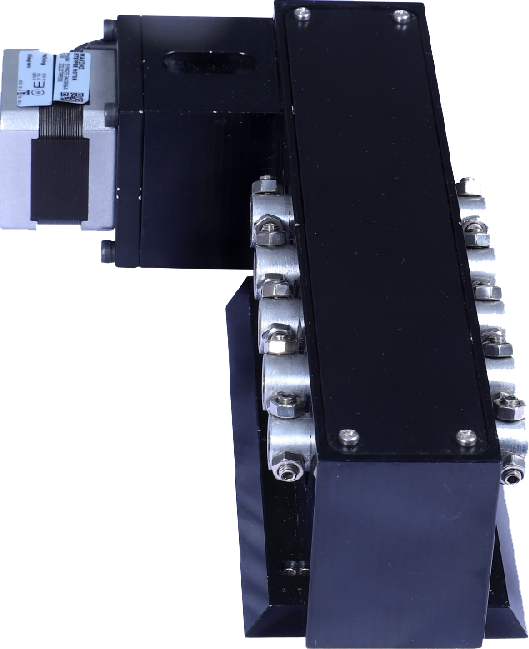

    10 collate diamond setting fixture with single motor.
  • 2
    Capable to cut highly complexed planned diamond like Sawing, Slicing, Double Side.
  • 3
    Consistent Results and Reliability.
  • 4
    Exceptional Beam Quality gives lowest breakages.
  • 5
    Optical Attenuator allows to process at all power levels
  • 6
    Sealed Resonator with Temperature and Humidity controller.
  • 7
    Best model in Performance with attractive & sleek design in industry.
  • 8
    Robust and sturdy structure for lowest vibration, minimum maintenance and high quality output.
  • 9
    Industry proven Components for long terms stability
  • 10
    Magnetic axis for better accuracy and very smooth surface for green laser.
  • Laser
    : Green
  • Spatial Mode
    : TEM 00
  • Wavelength
    : 532 nm
  • Polarization
    : Linear
  • Beam Roundness
    : >90%
  • Average Power
    : >16 W
  • Repetition Rate
    : 6-12 KHz
  • Cooling Water
    : Steam Distilled + 10% Optishield
  • Axis Travel
    : 130mm x 130mm x 70mm
  • Resolution
    : 2 Micron
  • Accuracy
    : 2 Micron / 25mm
  • Repeatability
    : 2 Micron / 25mm Bidirectional
  • Driver
    : AC Servo
  • Power Requirement
    : 220 VAC + 10% ,1 Phase, 50 Hz
  • Power Consumption
    : <2.5 KVA
  • Room Temperature
    : 240 C - 260C
  • Length x Width x Height
    : 1200mm x 670mm x 1500mm
  • Weight
    : 550 Kg
